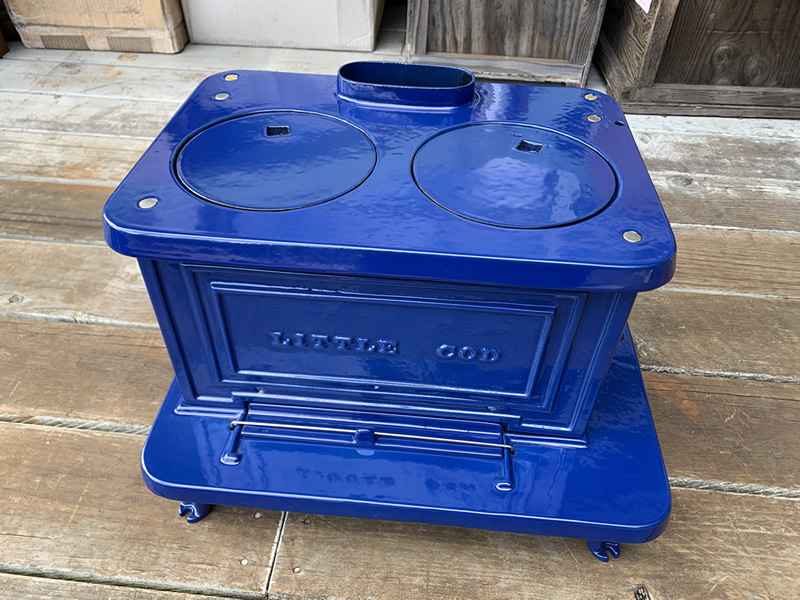

Navigator's Model # NSW2. "LITTLE COD"


"An old favorite along the Canadian coast.
Built for hard usage in boats and small cabins.
Styled to reflect the traditions of life at sea."

* * *

click image for more pics

Due to its enduring practical appeal, the
"Little Cod" has
earned a place aboard many craft on many coasts. First
produced circa 1917, this compact solid fuel stove was
initially designed to keep fishermen warm and well fed
as they jigged for cod. This ruggedly beautiful cast iron
marine stove is the result of over 80 years of refinement.
Its simplicity and reliability will be a welcome addition
to any galley, cabin, or pilothouse.

Economical to run and maintain, this source of dry heat will
undoubtedly be the greatest contributor to comfort aboard
your yacht. Designed for boats, but delightful in small rooms,
cabins, and workshops, the “Little Cod” is ideal for spaces
where the use of a conventionally sized stove is impossible.


Specifications:
Height: 11.375 In. (28.5 cm.) to top of cook surface./13 In. (33 cm.) to top of sea rail.
W
idth: 18 In. (45.75 cm.).
Depth: 13.75 In. (35 cm.) Weight: 55Lbs. (25 kg.)


Features:


- Cast Iron Construction

- Burns Wood & Hardwood Charcoal

- Optional Porcelain Enamel - The Ultimate in Beauty & Durability

- Available in Black, Charcoal, Lt. Gray, Green, Blue, Mint or Plain Iron.


- Stainless Steel "Sea Rail" (to keep cook pots in place).

- Stainless Steel Thru-Bolts & S.S Door Hinge Pins.

-10,000 BTU's Low to 28,000 BTU's High,
[ 3 - 8 Kw.] Heat Output.
(Heats roughly 300 sq. ft.)
Rule of Thumb: 15 x Volume of Space to Heat = Reqd. BTU's.

- Right Hand Door Standard, Left Hand Optional.

- Holes In Legs For Securing Stove To Platform.

- Uses 4" Chimney Pipe (10 Cm).


- Compatible with our bronze "Drop-In" Burner Modules!

- US EPA & State of Washington Emission Certification.

Modern "Clean-Burn" Technology - Non Catalytic.

{ When installing "on land" in Washington State,
Navigator's Outside Air Kit - #NSWOAK may
be required. Call or Email for more info.}


Pricing:

$1125 in Plain Iron
Porcelain Enamel Option $1675
Red Porcelain $1875

( Plus Hard Foam Crate
$40, Shipping, & Applicable Tax.)


Easily Shipped By UPS or US Postal to Europe.

marinest@marinestove.com / 360 376 5161




* * *

"Thank you, thank you, thank you for making this wood stove!
It is the coolest thing I've ever bought (aside from our boat).
It's heating the boat extremely well right now, and gives it a modern,
yet rustic vibe. I grew up with 2 wood stoves heating my house as a
kid and now the LC is making the boat feel just as homey.
My wife loves it, and we are a step closer to self sufficiency.
Thanks for all of your help. I'll send some pictures soon.
This thing ROCKS."

Sean S/V Sea Dancer, LI, NY.





COD INSTALL IN PROCESS


Maurice Griffiths - text from Swatchways & Little Ships -
1940's

"How warm and almost luxurious our cabin appeared as we sat back relaxed
and contented after our meal. With a red glow from the stove and a soft light
from the oil lamp there is for me no place in the world quite so warmly
embracing and comforting as the cabin of a little yacht anchored in
a
sheltered spot."


* * *
